1. Product Overview

Product Name: Precision Injection Mold/Blow Mold/Compression Mold (Adjusted according to type)

Application fields: automotive parts, electronic appliances, medical devices, daily necessities, packaging containers, etc.

Core function: It is used for mass production of high-precision and high-consistency plastic products.

2. Product Features

High precision: Tolerance range ±0.01mm, ensuring the dimensional stability of the product.

Durability: Made of high-quality die steel (such as P20, H13, S136, etc.), with a heat treatment hardness of HRC 48-52, the service life can reach over 500,000 times.

Structural design

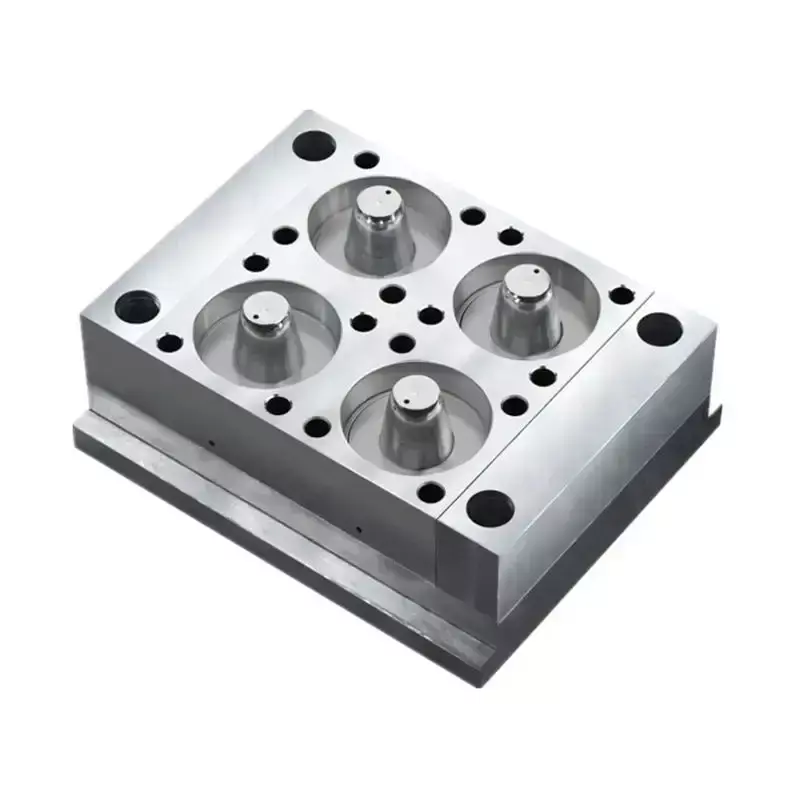

Multi-chamber mold design (optional 1/2/4/8 chambers, etc.) enhances production efficiency.

Hot runner system (optional), reduces waste and shortens the molding cycle.

Surface treatment: Mirror polishing (Ra≤0.05μm), sunbathing, electroplating, etc., to meet different appearance requirements.

3. Technical parameters

Project parameter details

Mold types: injection molding/blow molding/compression molding/extrusion molds

Forming materials: ABS, PP, PC, PVC, nylon, etc. (customizable)

Mold dimensions: length × width × height (e.g. 500×400×300mm)

Mold cavity quantity: Single cavity/multiple cavities (customized according to requirements)

Cooling methods: water cooling/oil cooling/beryllium copper rapid cooling

Production cycle: Single molding time (such as 15-60 seconds)

4. Customized services

Design support: Provide 3D modeling (in STEP/IGES format) and DFM analysis (manufacturability report).

Processing equipment: CNC machining, EDM electrical discharge machining, wire cutting and other precision processes.

Mold trial service: Free mold trial and sample debugging are provided to ensure consistency in mass production.

5. Quality Assurance

Testing standards: Comply with certifications such as ISO 9001 and ISO 13485 (medical grade).

Inspection tools: Three-coordinate measuring machine (CMM), projector, hardness tester, etc. for full inspection of key dimensions.

6. Application cases

Automotive industry: Headlamp housings, instrument panel components.

Electronics industry: phone cases, connectors.

Medical industry: syringes, infusion bottle caps.

7. After-sales service

Warranty period: 1-2 years (depending on the type of mold).

Lifetime maintenance: Technical consultation and mold repair services are provided.
